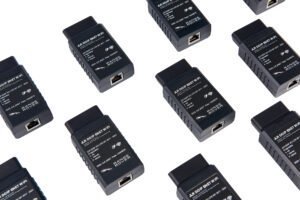

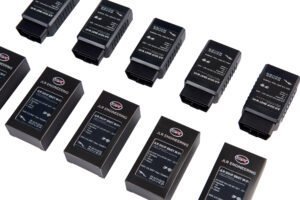

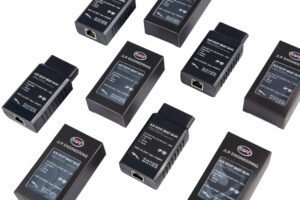

JLR Enet DoIP Adapter MY 2017-2025 Vehicles

SX‑CAN.com brings you a dedicated Enet DoIP adapter that unlocks diagnostics and programming on every
Jaguar Land Rover vehicle built between 2017 and 2025. This compact device converts your standard
J2534 pass‑thru interface or PC Ethernet port into a fully capable DoIP gateway, handling vehicle
discovery, routing activation, and TCP data transfer without additional software or complex IP
configuration. You simply plug in and go.

Why a DoIP Adapter Matters for Modern JLR Vehicles

Jaguar Land Rover shifted its electrical architecture to a centralised Ethernet backbone from the
2017 model year onwards. Without a DoIP communication channel, you cannot access the secure gateway
module, read diagnostic trouble codes, flash ECUs, or perform security functions such as key learning
and immobiliser pairing. A basic OBD‑II to USB cable cannot negotiate the Ethernet protocols required.
Our adapter solves this problem instantly. It provides:

• ISO 13400‑2 compliant DoIP with automatic vehicle announcement and routing
• Full‑duplex 100‑Mbps communication for rapid ECU flashing
• Seamless integration with your existing J2534 device
• Stable, error‑resistant connections that prevent flash corruption

Technical Specifications

• Protocol Support: DoIP (ISO 13400‑2) with Ethernet activation and alive‑check
• Connector OBD‑II: 16‑pin J1962 male, fully pinned for Ethernet on pins 3, 8, 11, 12
• Input Side: RJ45 Ethernet female, accepts standard Cat5e/Cat6 patch cable
• Interface Chipset: High‑performance automotive‑grade Ethernet transceiver
• Enclosure: Compact, impact‑resistant polymer housing (approx. 65 × 35 × 20 mm)
• Operating Voltage: 12 V DC drawn from OBD‑II port (no external power needed)
• Indicator LEDs: Power (green) and Ethernet link/activity (amber)
• Compatibility: Works with any Windows, macOS, or Linux system that supports Ethernet over USB or native RJ45
• Driver Requirement: None – the OS detects the interface as a standard network adapter

How to Connect Your Adapter

Setup requires only a few simple steps, and you can complete them in under two minutes:

1. Insert the adapter into your vehicle’s OBD‑II socket – the green power LED illuminates.
2. Run a Cat5e/Cat6 Ethernet patch cable from the adapter’s RJ45 port to your PC’s network port or USB‑Ethernet dongle.
3. Wait for Windows (or your OS) to detect the network and assign an IP via DHCP‑fallback.
4. Launch your JLR diagnostic application (SDD, Pathfinder, TOPIX Cloud) and select the new Ethernet adapter from the interface list.

The software automatically discovers the vehicle and activates the DoIP tunnel – no manual IP entries
or subnet configurations needed. Our support team can assist you within minutes if your particular
firewall or antivirus blocks the auto‑detection.

Compatible Vehicles

This adapter covers the complete DoIP‑equipped JLR lineup from model year 2017 to 2025, including:

• Range Rover (L405) 2018‑2025
• Range Rover Sport (L494) 2017‑2022
• Range Rover Velar (L560) 2018‑2025
• Range Rover Evoque (L551) 2019‑2025
• New Defender 90/110/130 (L663) 2020‑2025
• Discovery 5 (L462) 2017‑2024
• Discovery Sport (L550) 2019‑2024 (Ethernet‑enabled variants)
• Jaguar F‑Pace (X761) 2017‑2025
• Jaguar E‑Pace (X540) 2018‑2025
• Jaguar I‑Pace (X590) 2019‑2025
• Jaguar XF (X260) 2017‑2024

You can also use the adapter with earlier CAN‑only JLR vehicles (2005‑2016) when paired with a J2534
pass‑thru device for standard CAN diagnostics – the adapter does not block legacy protocols.

Key Benefits of the SX‑CAN.com Adapter

We designed and tested this adapter specifically for the demanding requirements of Jaguar Land Rover
workshops. It offers you:

• True plug‑and‑play operation: No configuration files, no registry edits, no driver installations.
• Robust physical design: The adapter withstands repeated insertion and removal cycles in busy shops.
• Ultra‑low latency: You see live data streams and complete flash cycles without timeout errors.
• Universal compatibility: Works with all genuine JLR software platforms (SDD, Pathfinder, TOPIX Cloud).
• 12‑month replacement warranty: We replace your adapter immediately if any hardware defect appears.

Why Purchase from SX‑CAN.com

Our company focuses entirely on Jaguar Land Rover diagnostic tools, giving you unmatched expertise.
When you buy from us, you receive:

• A product that we personally validate on real JLR vehicles before shipment
• Lifetime access to our setup guides, video tutorials, and technical articles
• Fast, tracked worldwide shipping
• Direct access to our engineering team for any connection or software questions
• Secure payment processing and transparent warranty handling

Order Your JLR Enet DoIP Adapter Today

Add the adapter to your cart now and bring full DoIP diagnostics to your workshop in minutes.
Whether you replace a failed BCM, reprogram a transmission control unit, or perform a security
immobiliser reset, this adapter becomes the reliable link between your PC and the vehicle. Trust
SX‑CAN.com for hardware that delivers performance, durability, and peace of mind.
